Dust Free Bag Discharging Station Industrial Small Bag Feeding Station

Place of Origin : China

Brand Name : DY

MOQ : 1

Delivery Time : 7-15 work days

Contact Now

Dust-Free Operation Industrial Production Line Bag Discharging Station

Product Description

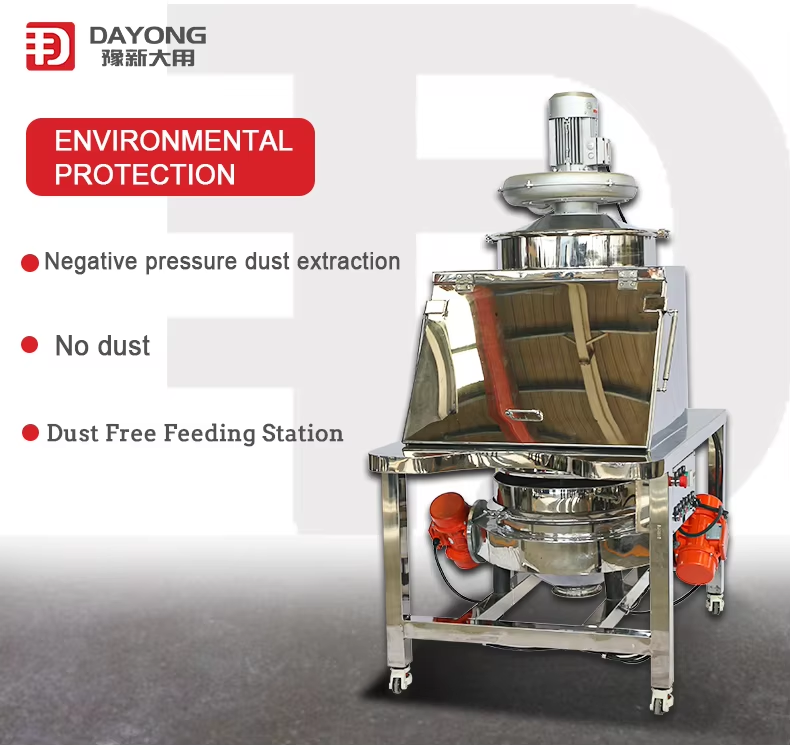

Small Bag Feeding Station consists of fast open stainless steel hopper, vibrating sieve, dust collector, controller etc., the operation process is: Open hopper door, manually put the bag on the shelf, cut the bag with a knife, dump the material to the sieve, qualified materials will go into the next process after the sieving, bags and debris are left on the sieve. The machine is equipped with bag / cartridge-type dust collector, negative pressure environment for feeding process, no dust leakage, greatly improved the feeding environment.

The device can be connected to the vacuum feeding machine, screw conveyors and a variety of conveyor equipment.

Dust Free Bag Discharging Station Industrial Small Bag Feeding Station

Product IntroductionSmall Bag Feeding Stations is commonly used for unpacking and discharging for bags (25kg or 50kg) filled with powder or granule materials. The unpacking and discharging work are done through manual bag open, automatic dumping and let the materials fall down by gravity to the storage hopper. The dust generated during operation is collected by the build-in dust collection to ensure clear working environment for operators. According to different production requirements, sieving function is optional to sieve impurities out. And it can also be equipped with vacuum feeding machine to charge materials through vacuum.

Product Advantages

The dust generated during operation is collected by the build-in dust collection to ensure clear working environment for operators.

Simple structure and reliable, small power consumption, will not break materials. It is specially suitable for the environments such as toxic, flammable and strong corrosive high dust etc.

Options are available depending on different requirements: dust collector, bag pressing device, hopper with vibrator, air hammer, rotary valve, sieving machine etc.

Using ScopeApplication Industry: Suitable for industries such as food, fine chemicals, additives, plastics, dyes, building materials, etc. (For more application industry, please click “Free Consultation” )
Applicable Materials: coffee, milk, flour, fungicides, preservatives, flavors and fragrances, aginomoto, powder, glucose, industrial raw materials, PVC powder

Technical Parameter

Hopper size: 800 * 800 * 1200 Feeding height: 800mm Sieving mesh: 20 mesh / 40 mesh / 80 mesh (can be customized) Optional: dust collector, pressure bags, vibration hopper, air hammer, rotary valves, etc

Model	Sieving Area	Power (kw)	Speed (rpm)	Dynamic Load	Static Load	Exciting Force (kN)	Flow	Wind Pressure
CWT-800	0.42	2×0.18	1460	800N	1500N	2.5×2	1550-997	1217-1641
CWT-1000	0.64	2×0.25	1460	500N	2500N	5×2	1550-997	1217-1641

Customer Case

Package & Shippment

Company Profile

Customer Feedback

FAQ

What the material can be conveyor? A: Powder granules bulk materials.2.What is the output or transportation of the machine? A:About 1-6t/h. It can also be customized on demand.
What the time of delivery or transportation? A:Usually 15-20 working days after payment.
What the transportation Stype ? A.In general, we choose express. Also according your request.
