Metal Powder Laboratory Test Sieves 400mm Diameter Soil Sieve Shaker

MOQ : 1

Price : US $600-1,500 / set

Place of Origin : China

Brand Name : DY

Delivery Time : 7-15 work days

Model NO. : DY400

Transmission Structure : Lab Testing Machine

Usage : Lab Powder/Particle Analysis

Works : Rotary Vane Shaker

Object : Soil

Shaft Number : Single

Running Track : Circular Vibrating Screen

Supporting Device : Steel Spring

Warranty : 18months

Customized : Customized

Condition : New

After-sales Service : Online Video

Material : Stainless Steel 304/316

Layer(S) : 1-8 Layers

Mesh Size : 0-500 Mesh

Installation : Engineer Guide

Transport Package : Standard Export Wooded Case

Specification : 400mm diameter

Trademark : DY

Origin : China

HS Code : 847410000

Production Capacity : 200 Set/Sets Per Month

Contact Now

Efficient Laboratory Screening Equipment Metal Powder Test Sieve

Product Description

Laboratory vibrating screen is a standard analysis sieve integrating powder grading and liquid filtration; it is suitable for accurate analysis of particle size structure of particles and powders in laboratory and quality control room, and test and analysis of solid content and impurity content of liquid. It has the characteristics of low noise, high efficiency and high precision. A new type of special power generator is used to generate multi-element high-frequency vibration to screen and filter samples efficiently; the standard screen body ensures the high precision of sample analysis; the electronic delay device can set the same screening time of the same material according to the needs, ensure the uniformity of the analysis data of the sample, reduce the test error to a low degree, so as to make accurate judgment on the product quality.
Metal Powder Laboratory Test Sieves 400mm Diameter Soil Sieve ShakerProduct Details
Voltage and frequency:
Single phase: 220V/110V, 50/60HZ
Three phase: 220V/380V/415V, 50/60HZ
Source: One set of vertical vibration motor
Diameter: 200mm 300mm 400mm
Includes: Main unit, top cover (pan), catchers (collector) and sieves with different mesh.
Materials: Machine is made of common steel top cover, catcher and sieve are SUS304, or as customers' requirements.
Metal Powder Laboratory Test Sieves 400mm Diameter Soil Sieve ShakerMetal Powder Laboratory Test Sieves 400mm Diameter Soil Sieve Shaker
Product Parameters
Items Name Unit Data
1 Layers Layer 1-8
2 Diameter mm Φ200 Φ300 Φ400
3 Sieves Diameter mm Φ75 Φ100 Φ200 Φ300 Φ400
4 Granularity mm 0.038-3
5 Noise db <50
6 Feeding Capacity(once) g <200g/ml
7 Amplitude mm <5
8 Voltage v 110/220/230
9 Speed r/min 1420
10 Powder kw 0.125
11 Overall Dimension mm 450*415*800
12 Weight kg 45

Application

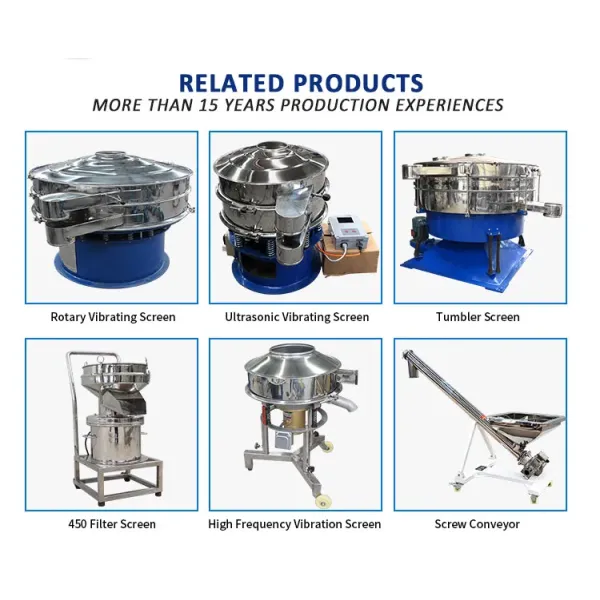

Metal Powder Laboratory Test Sieves 400mm Diameter Soil Sieve ShakerRelated Products
Metal Powder Laboratory Test Sieves 400mm Diameter Soil Sieve Shaker
Company Profile



Xinxiang Dayong Vibration Equipment Co., Ltd., located in Xinxiang city, Henan province, China, which is an enterprise integrated scientific researching, device producing and product marketing. We mainly produces DY series vibrating screen, linear vibration sieve, test sieve, vibration conveyor, vibration feeder and other handling equipment. Our company mainly produces the products for sieving, conveying, elevating, and crushing equipment. Our company has strong technical force, with the strategy aiming to obtain enterprise reputation, be bold in innovative technology and provides good service, and our company has become a well-known enterprise in the industry.
Metal Powder Laboratory Test Sieves 400mm Diameter Soil Sieve ShakerMetal Powder Laboratory Test Sieves 400mm Diameter Soil Sieve Shaker
FAQ

1).MOQ require?
Our moq is 1 set.(If you need the spare parts,it is also ok).

2).Payment method?
Usually,we accept T/T,Western Union and others, we can't accept D/P,D/A

3).How to guarantee the quality?
If any machine quality problems, we accept return cargos.
Our warrantity is 18 months, promise your 0 risks purchasing

4).Packing and Delivery
Standard export wooden case to protect the machine from demage.
If we have no stock, we will delivery within 10-15 working days.
